NEW PRODUCT RELEASE

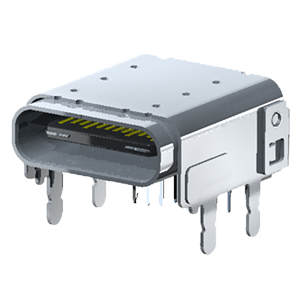

USB TYPE-C

USB type-c can be applied to various 3C products, and it is also used widely in medical equipment recently.

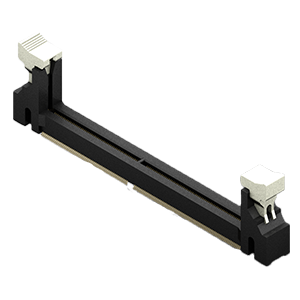

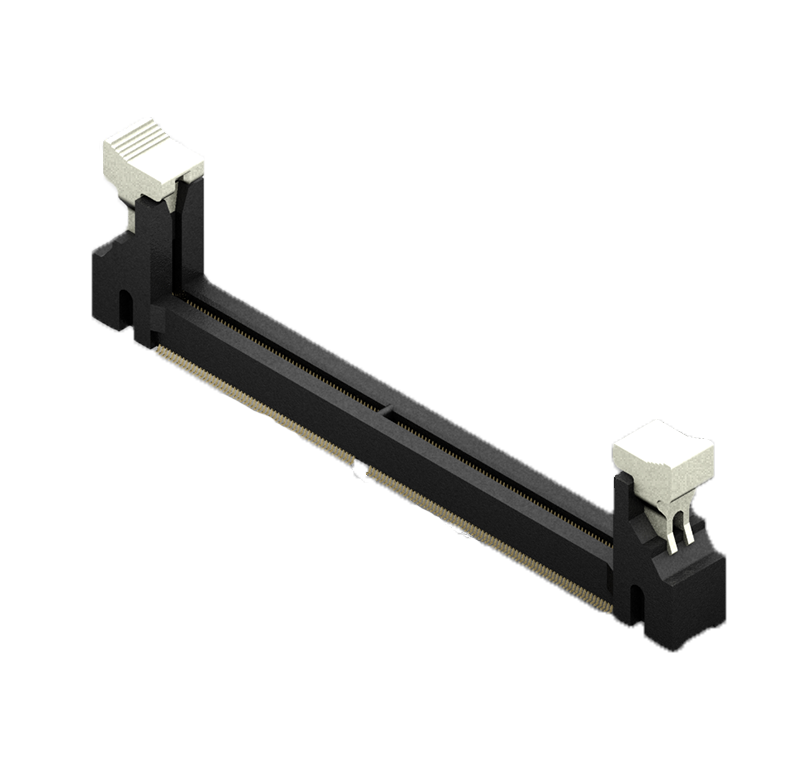

SO-DIMM SOCKET (DDR4)

A small outline dual inline memory module (SO DIMM) socket can enable reliable connection to standard memory modules. SO DIMM sockets are designed for the latest DDR4, as well as previous versions DDR3, DDR2, DDR, and SDRAM memory modules. For DDR1 and DDR2 SO DIMM sockets, the pin count is 200 pins; for DDR3 SO DIMM sockets, the pin count is 204 pins; for DDR4 SO DIMM sockets

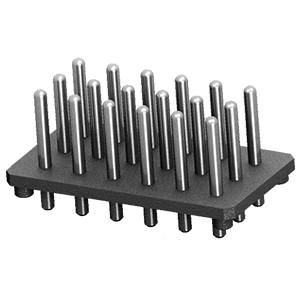

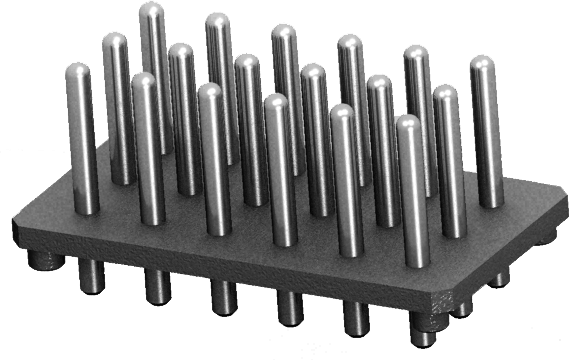

PCB Headers

Use FR-4 PCB material as the housing, we can create a custom header with various configurations but without the costly plastic tooling and long tooling lead time. From prototype and production in low to high volumes at a minimal cost for your applications.

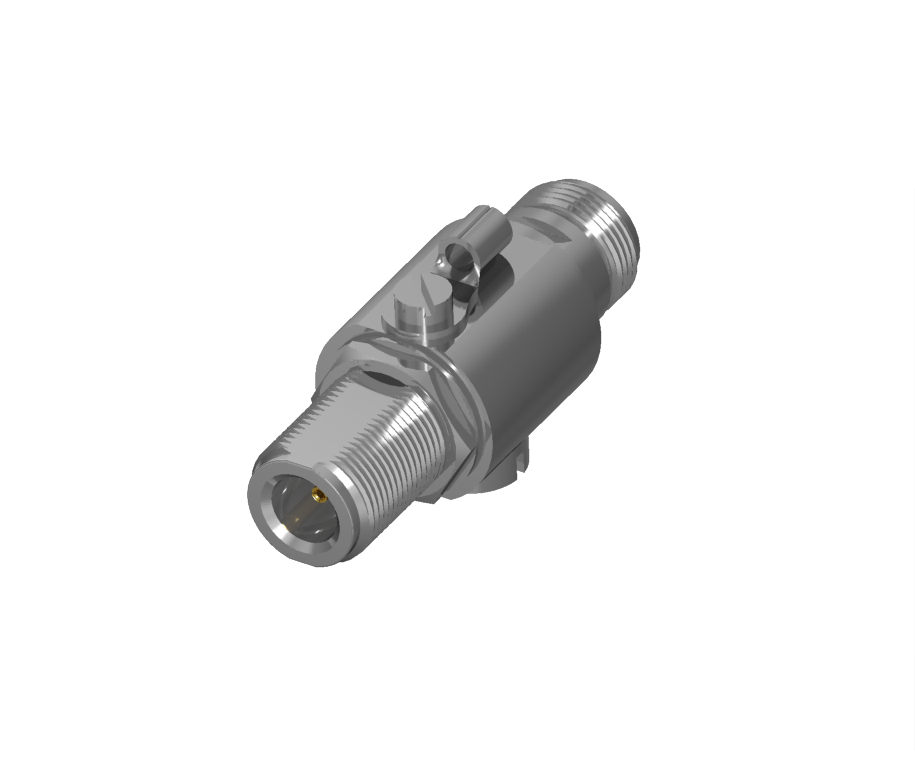

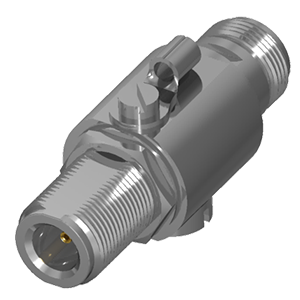

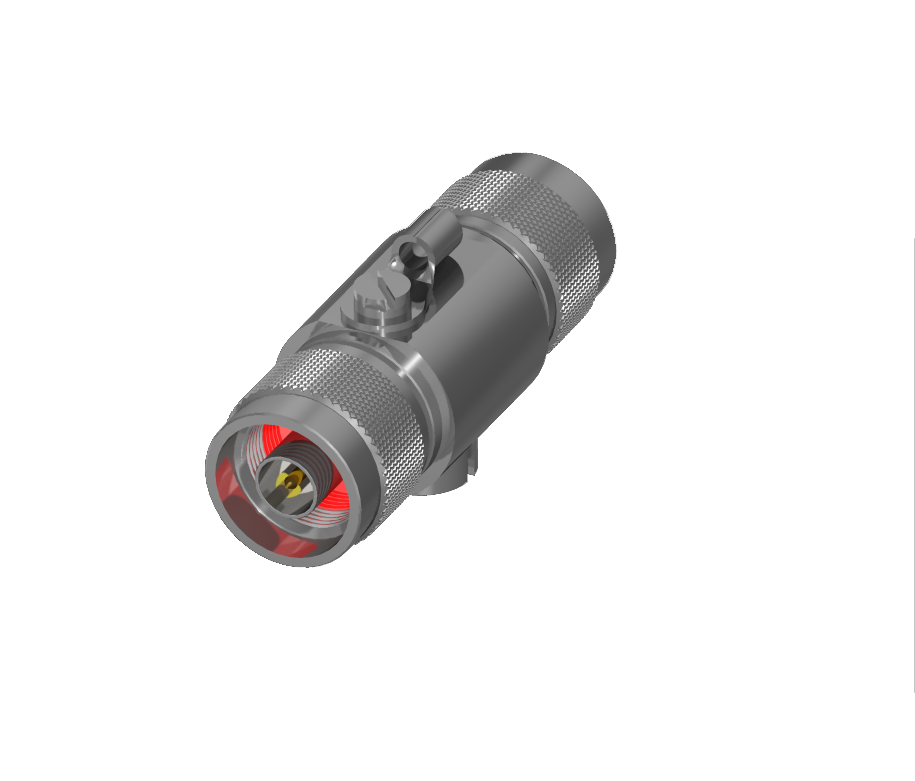

LIGHTNING SURGE PROTECTOR

MMT Machrone released LIGHTNING SURGE PROTECTOR.

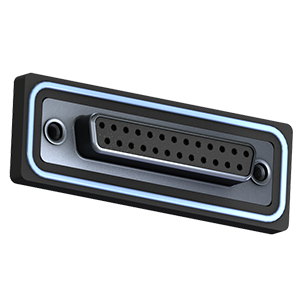

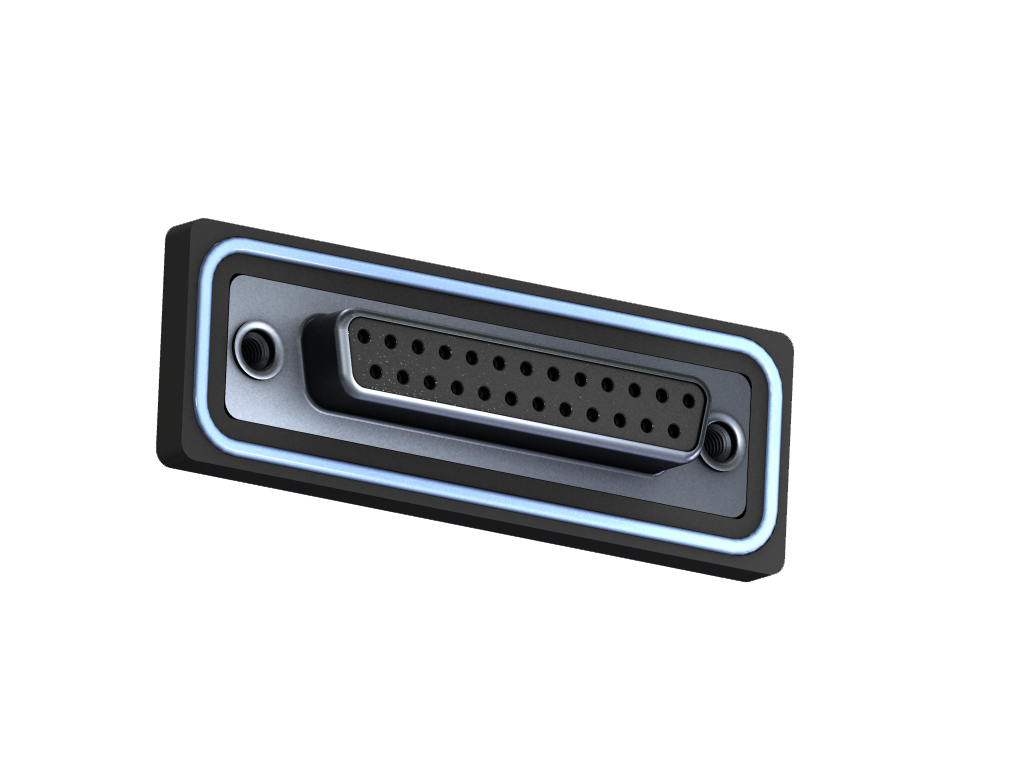

D-SUB WATERPROOF CONNECTOR

MMT's new water proof DSUB series connectors have various configurations for your applications. We offer 9, 15, 25, 37 pins/male, female/straight, right angle/with or w/o board locks, we also make custom footprint and custom solder tail length. The water proof DSUBs are IP-67 certified.

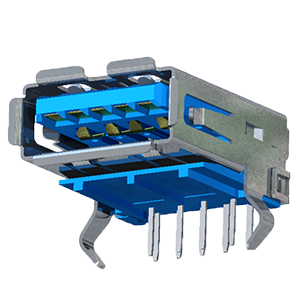

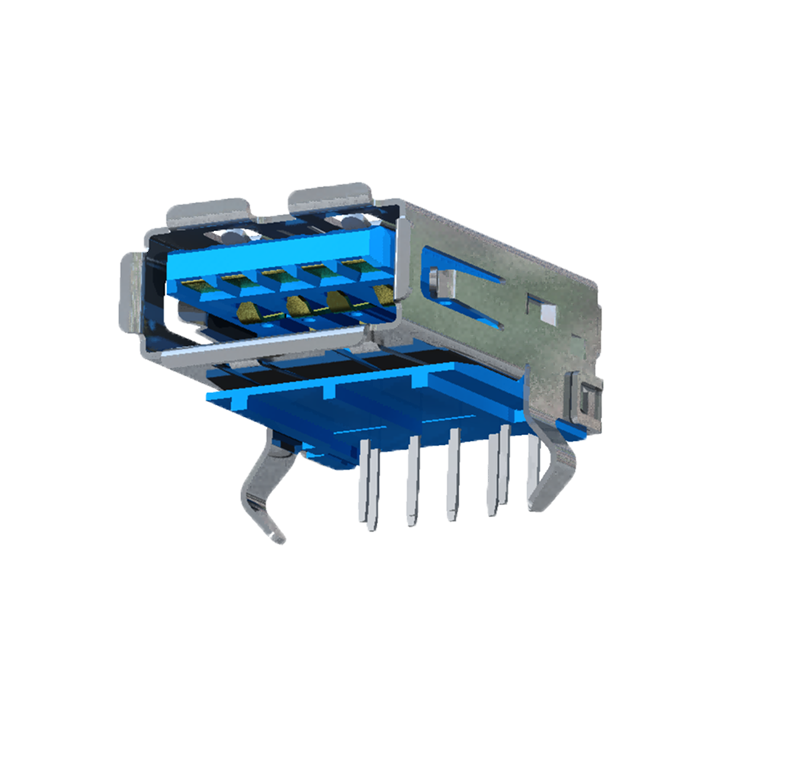

USB 3.0 CONNECTOR

MMT released USB 3.0 A and B type connector, both are backward compatible with 2.0 plugs. It has the same physical configuration as USB 2.0 but with five more pins. The additional USB 3.0 pins are two differential pairs and one ground (GND_DRAIN) for SuperSpeed data transfer. The GND_DRAIN pin is for drain wire termination and to control EMI and maintain signal integrity.

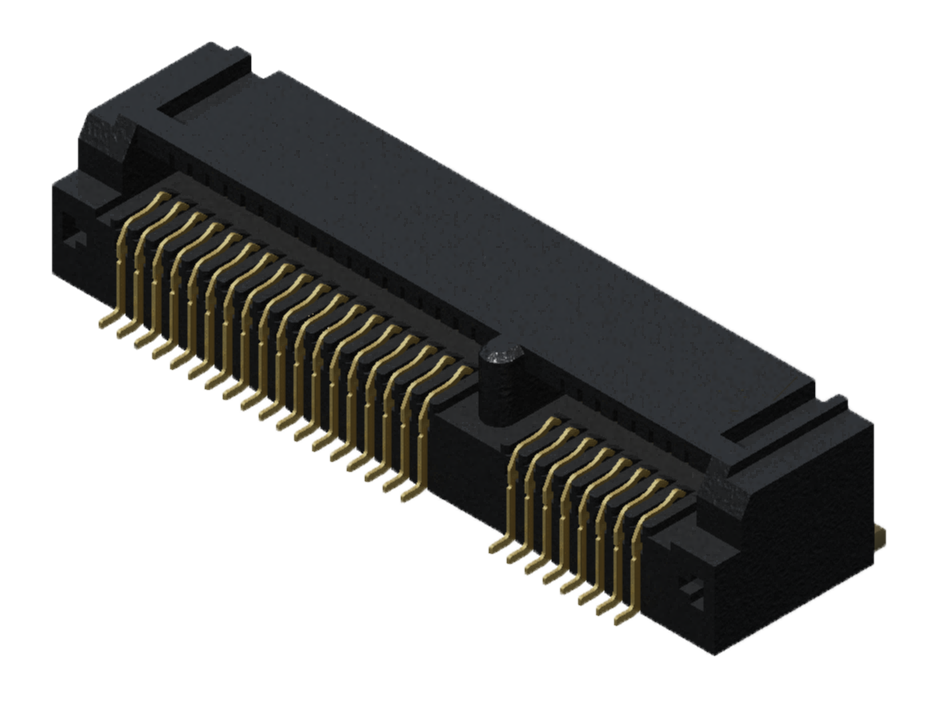

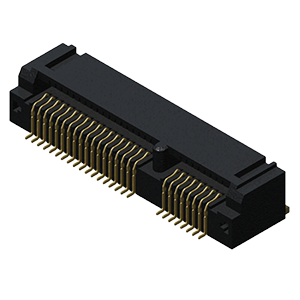

MINI PCI EXPRESS CONNECTOR SERIES

MMT Machrone released MINI PCI EXPRESS connector Series.

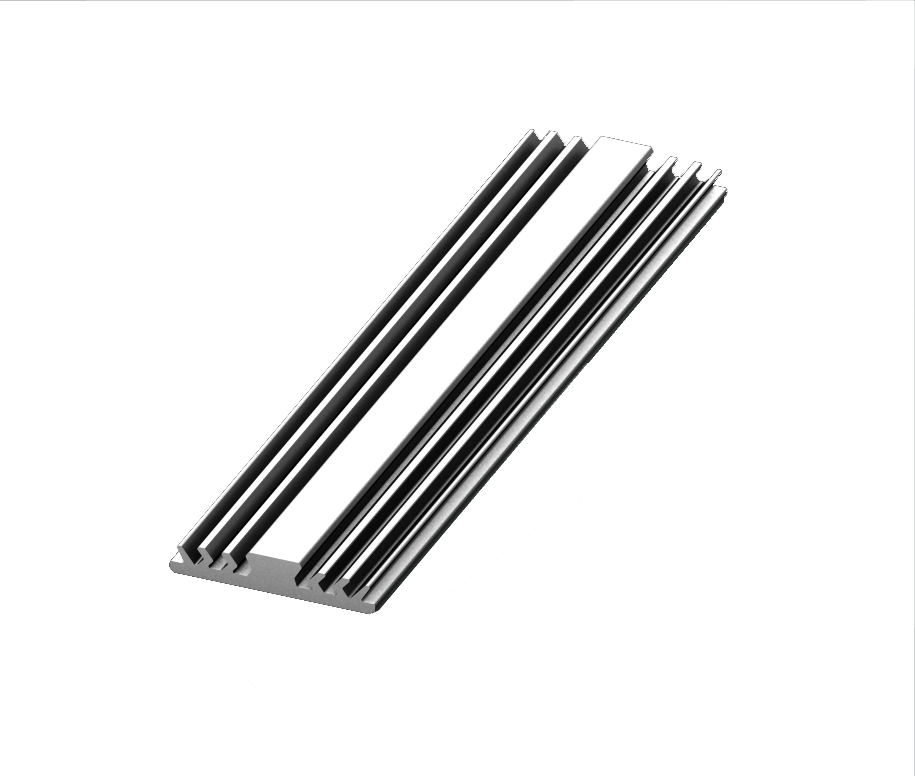

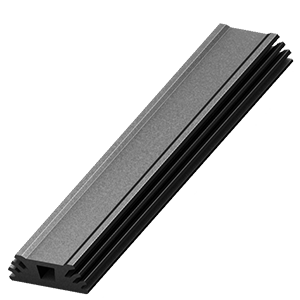

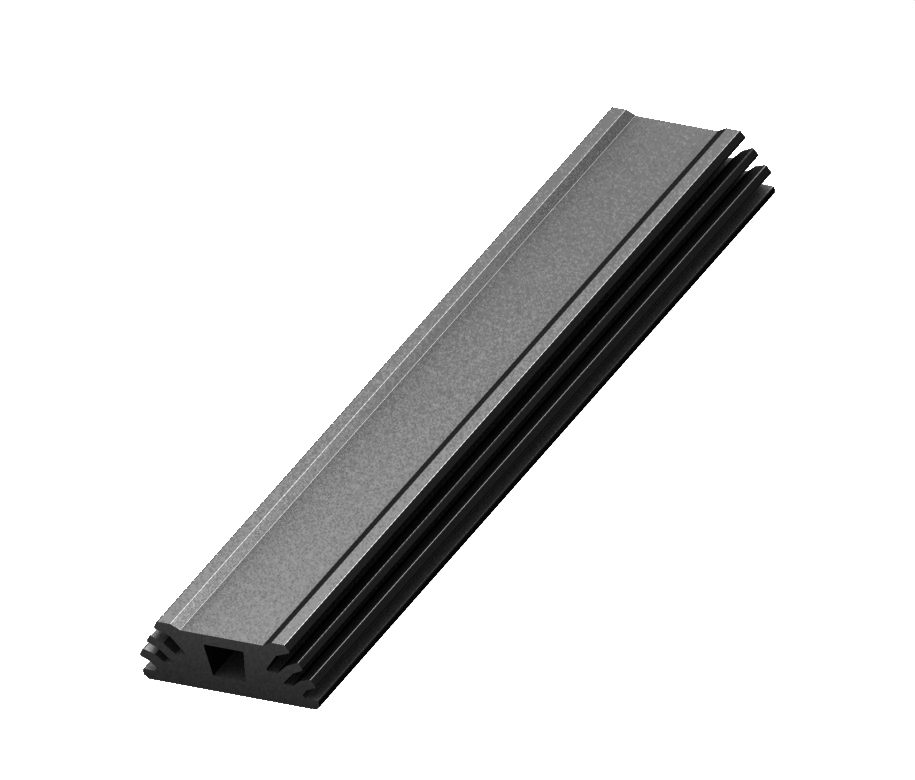

HEAT SINK (for M.2 Module)

Aluminum alloy fins for optimal heat dissipation Works on motherboards or M.2 adapters

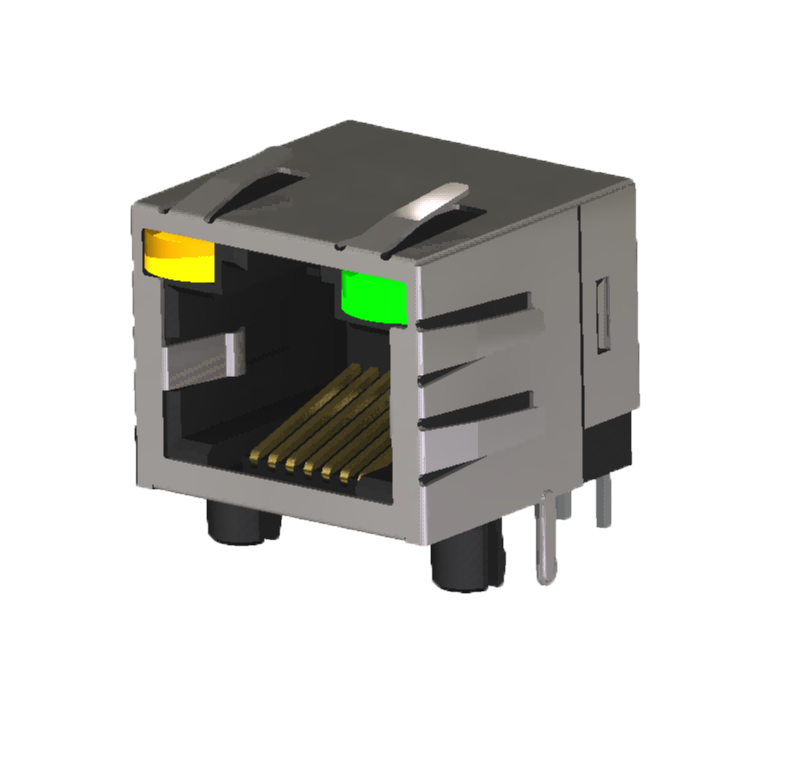

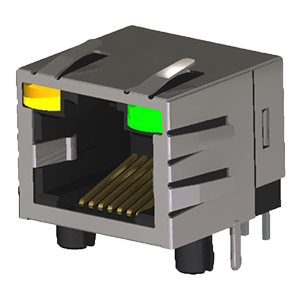

MODULAR JACK w/INTEGRATED TRANSFORMER

MMT provides a complete lines of MOD Jacks with integrated transformers and LEDs. Compact integrated design could support your applications from 10/100M, 1G and up to 10G. Dual color LEDs are also available this lines of products.

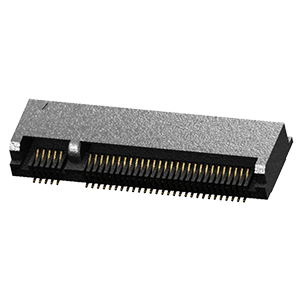

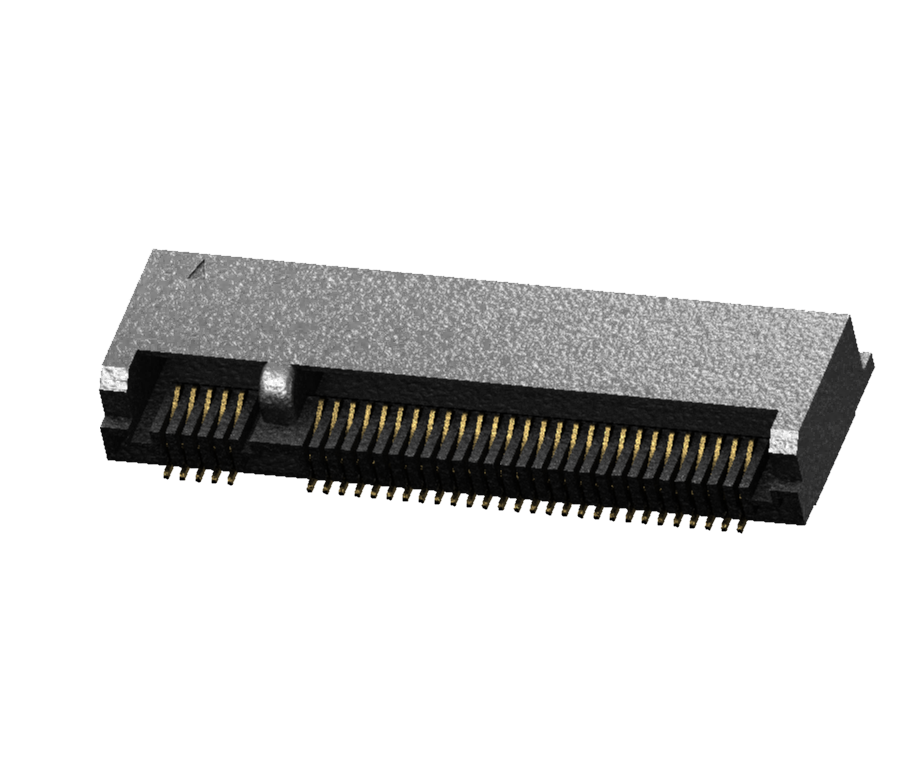

NGFF (M.2) CONNECTOR

NFGG (M.2) module keying and provided interfaces A/ B/ E/ M type

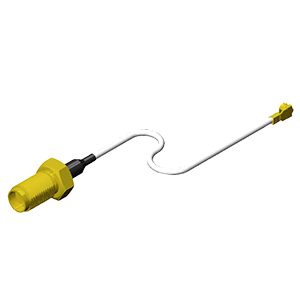

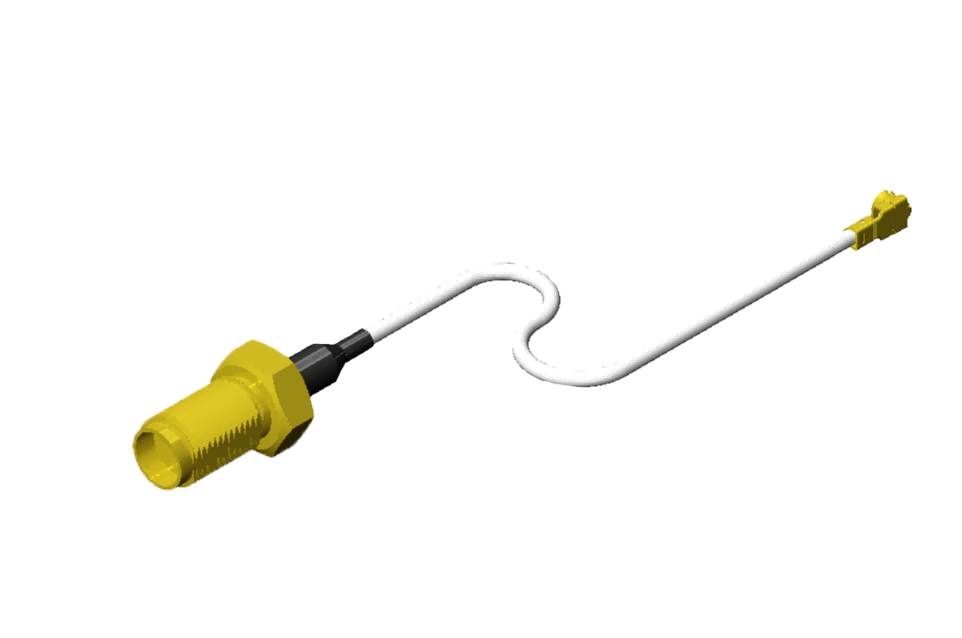

RF SERIES CABLE ASSEMBLY

MMT's high quality coaxial connectors, coaxial cable assemblies and coaxial adapters/terminators make your RF design extremely cost effective w/o sacrifice your performance. From SMA, SMB, MCX, MMCX, N, BNC, U.FL, with .113/137/1.32DB/RG178/RG316/RG174/Takitek/ RG179/RG213/RG58/U/semi-riged 402/semi-flex .141/.085/.047/CFD200/CFD240/CFD100

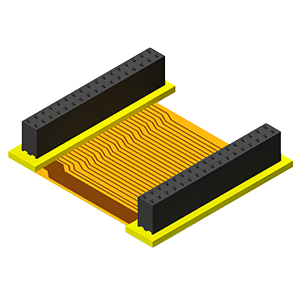

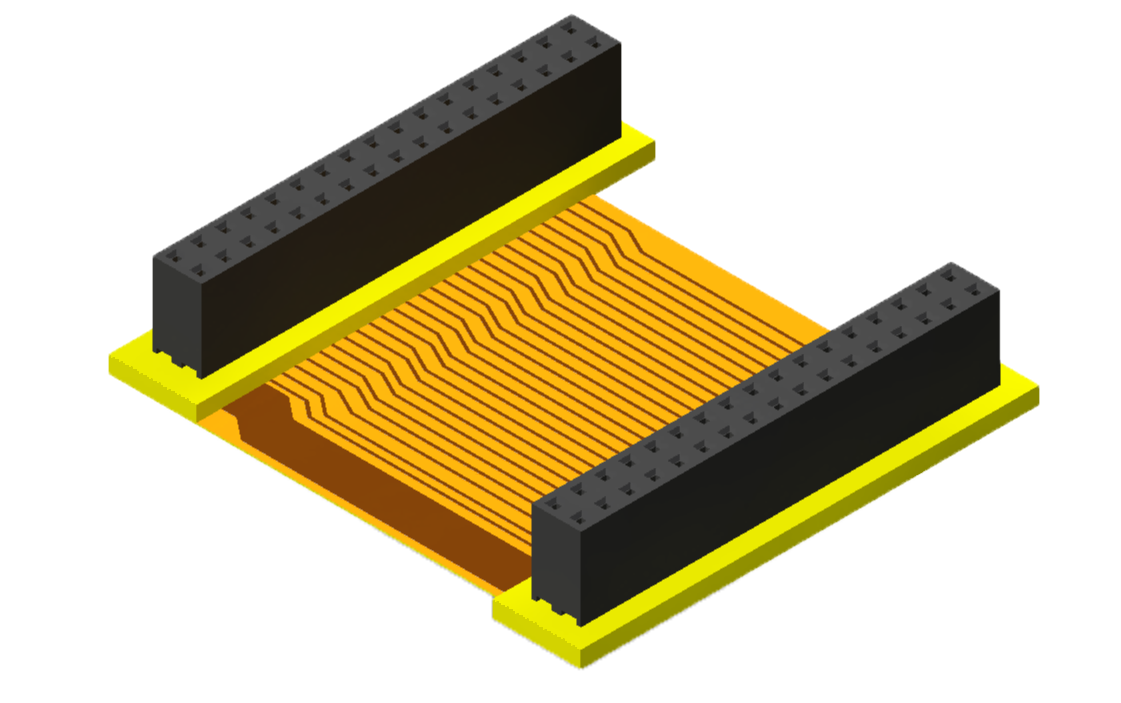

FPC CABLE ASSEMBLY

With MMT board to board connectors and flex circuits, from connector gender, orientation, number of positions, cable length and any ground/signal patterns, we can build thousands of different configurations of FPC cable for you. 1 once and 0.5 once copper are available ! With schematics, we can help you create FPC gerber file for free; No NRE charge for the initial build.
